110pcs Solder Seal Heat Shrink Nylon Insulated Butt Terminal Electrical Wire Connector Kit Waterproof Set with Case

Supla
Availablity: Usually ships in 24 hours

Compare

60pcs 4 Sizes Solder Seal Heat Shrink Wire Connector Kit
50Pcs 3 kinds of Nylon Insulated Heat Shrink Butt Terminal Electrical Wire Crimp Connectors Kit
2 kits in one box

$19.99 (as of April 14, 2017, 7:11 am) & FREE Shipping. Details

Usually ships in 24 hours

StumbleUponEmail

60pcs 4 Sizes Solder Seal Heat Shrink Wire Connector Kit :
Material: tinned copper
Color: red, blue, white, yellow
25 * Red shrink connectors: diameter: 3.0 mm, cable cross-section: 0.5-1.0 mm2
20 * Blue shrink connectors: diameter: 5.0 mm, cable cross-section: 1.0-2.5 mm2
10 * White shrink connectors: diameter: 1.5 mm, cable cross-section: 0.3-0.5 mm2
5 * Yellow shrink connectors: diameter: 6.0 mm, cable cross-section: 4.0-6.0 mm2

50Pcs 3 forms of Nylon Insulated Heat Shrink Butt Terminal Electrical Wire Crimp Connectors Kit
Product Features
•Top of the range Water resistant Heat Shrink Butt Terminal Connector kit
•Packing: 50PCS (Red: 20Pcs, Blue: 20Pcs, Yellow: 10Pcs)
•Material : Copper + Nylon, Wire Crimp Size: 22-16AWG, 16-14AWG, 12-10AWG
•Conforms to Marine automotive and so on manufacturer’s specifications for wiring repairs vital for maintaining electrical warranties
•For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps inside the terminal. Product Description
Packing: 50Pcs

Red: 20Pcs
Wire range: 0.5-1.5mm²
A.W.G.: 22-16
Max current=19A

Blue: 20Pcs
Wire range: 1.5-2.5mm²
A.W.G.: 16-14
Max current=27A

Yellow: 10Pcs Wire range: 4-6mm²
A.W.G.:12-10
Max current=48A
Material : Copper + Nylon
Material : Copper + PE
Operating temperature: -55 ℃ -125 ℃
Start shrink temperature: 80 ℃
Fully shrink temperature: 130 ℃

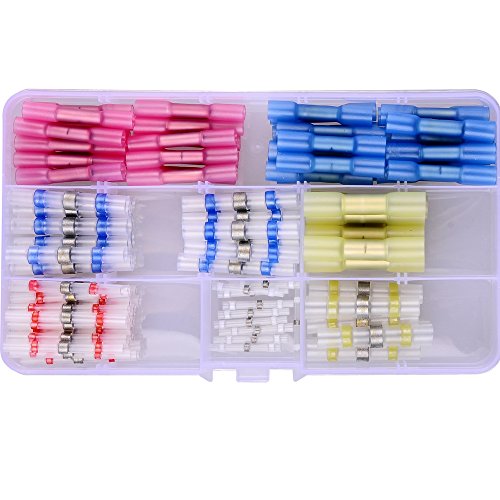

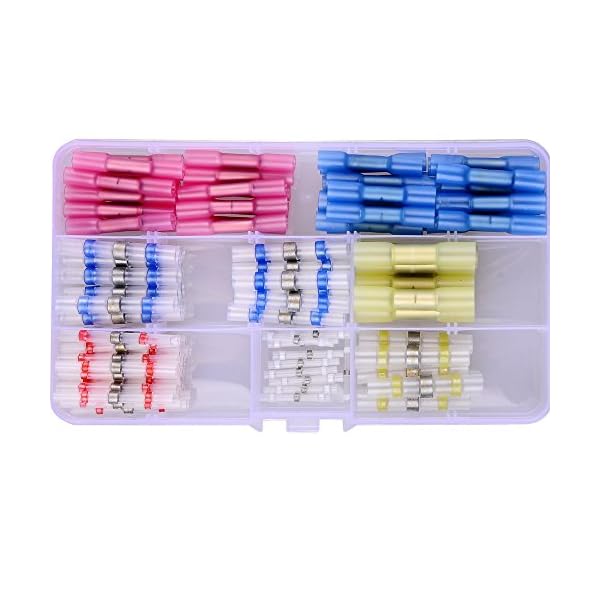

All are enclosed in plastic case for simple get entry to.
When properly heated and reduced in size, they provide a seal that may be resistant to water, steam, salt and other contaminants.
Heat shrink insulated connectors will provide improved pullout strength and strain relief.
60pcs 4 Sizes Solder Seal Heat Shrink Wire Connector Kit
50Pcs 3 forms of Nylon Insulated Heat Shrink Butt Terminal Electrical Wire Crimp Connectors Kit
2 kits in one box
