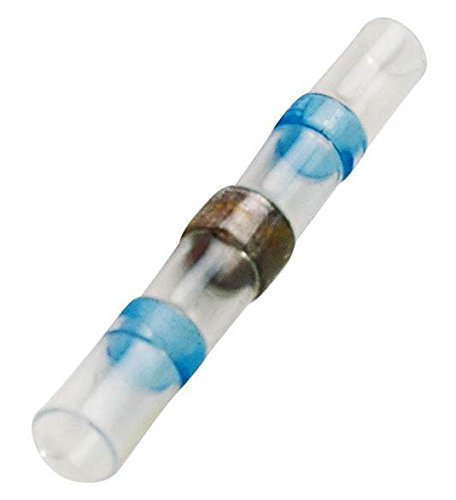

AIRNIX 50 Piece Blue AWG16-14 Heat Shrink Solder Sleeves

AIRNIX
Availablity: Usually ships in 24 hours

Compare

QTY 50 Blue AWG16-14
Easy One-Step…Apply Heat to Create a Soldered, Insulated Waterproof Seal
Polyolefin Heat Shrink Solder Seal Butt Connectors for Improved Pullout Strength and Strain Relief

$16.99 (as of April 14, 2017, 7:09 am) & FREE Shipping. Details

Usually ships in 24 hours

StumbleUponEmail

Heat Shrink Solder Sleeves are similar to the Heat Shrink Crimp Splice; alternatively, they have the added benefit of having an inner lining of solder that creates a more protected connection when being heated. The outer jacket is a heat shrink material that, by shrinking down to the diameter of the cable, creates a weather resistant environmental barrier. The Solder Sleeve is robust, simple and effective but does wish to be used by someone experienced making some of these connections ; this is because the combination of heat and the truth that you only get one shot to install these means they will have to be assembled as it should be to work effectively. Also, those without experience may inadvertently destroy the connector by applying too much heat. Working temperature: – 131 Degree Fahrenheit to ~257 Degree Fahrenheit. Full Contraction Temperature: 266 Degree Fahrenheit. Solder Begin to Melt Temperature: 257 Degree Fahrenheit. Solder Completely Melted Temperature: 302 Degree Fahrenheit. If you find the solder is not melting, verify your heat gun is if truth be told putting out 300 degree Fahrenheit with a Infrared Thermometer or similar.
QTY 50 Blue AWG16-14
Easy One-Step…Apply Heat to Create a Soldered, Insulated Waterproof Seal
Polyolefin Heat Shrink Solder Seal Butt Connectors for Improved Pullout Strength and Strain Relief
Ideal for use in Marine and Automobile Applications
Advisable for those Experienced The use of a Heat Gun to Make Heat Shrink Connections
