Molded Replacement T-Bar Handle PENN JigMaster Squidder 4/0 (113) 309m Int’l 12

Reel Power Handles
Availablity: Usually ships in 6-10 business days

Compare

Articulation Provides Greater Power by Eliminating Straight-Arm Cranking
Eliminates Finger Fatigue & Blisters
Lightweight & Comfortable – Attractive Design

$19.95 (as of June 29, 2017, 5:56 am)

Usually ships in 6-10 business days

StumbleUponEmail

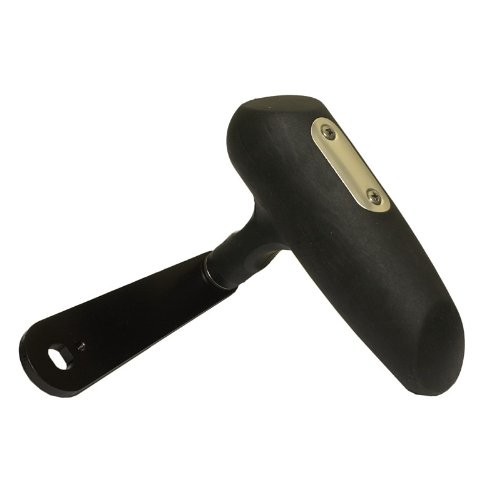

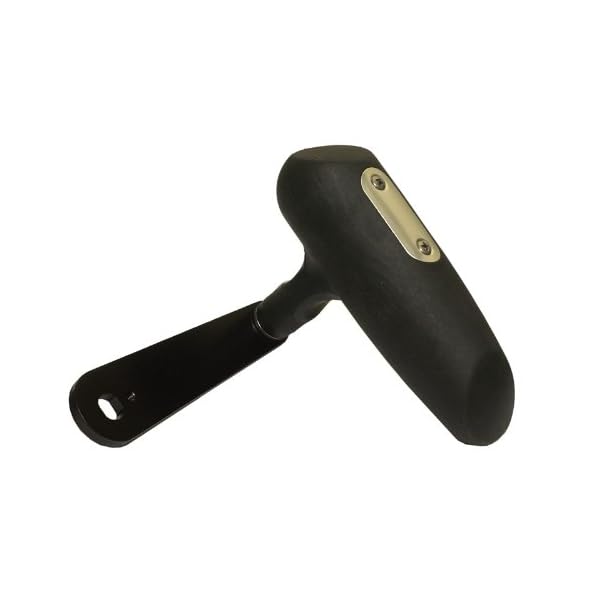

New Molded Light Weight 9 degree Articulated T-Bar Power Handle For Penn JigMaster and Squidder Reels. T-Bar Knob & Handle Blank are Included. ONE new hard plastic T-Bar Power handle. The knob incorporates a 9 degree offset to provide increased torque. The handle blank is constructed from black anodized 6061 Aluminum. Knob and handle blank available in BLACK only. To attach the knob to the reel handle: Remove the 2 small phillips screws and face plate from the top of the knob. This will expose a slot in the pin for a screw driver. Unscrew the phillips screw from the bottom of the knob using a second screw driver. Leave the washer on the exposed pin. Use blue Loctite 242 inside the pin when attaching the pin to the handle blank to secure the screw. Attach pin to the handle blank using 2 screw drivers. Then replace the face plate and 2 small screws. Here is a list of the reel which are compatible with the Power Handles. PENN
Jig Master 500, 500S, 501, 505HS & 506HS
Squidder 140L, 145, & 146L
Senator 111 (2/0), 112/112H, (3/0), 113 (4/0)
9M, 10 Mag, 49L, 109M, 149L
60, 65, 66, 67, 68, 111, 112, 285M, 267, 268
25, 26, 27, 155L, 160L, 209M, 350M, 180
185, 190,100M,150, 200M, 210M, 309M, 310GT
Single Speed International 12T, 12LT & 12H

If the Power Handle does not fit your reel, or you are not happy with your purchase, you may return the knob for a full refund.
Articulation Provides Greater Power by Eliminating Straight-Arm Cranking
Eliminates Finger Fatigue & Blisters
Lightweight & Comfortable – Attractive Design
NOTE: Reel is NOT Included
Contact Seller For Installation Notes If Needed.
