The S-series Heavy Duty Style Windlass:
All parts above the deck product of top polished stainless-steel 316.
Robust and compact windlass made specially for the rigid conditions of the ocean.
Suitable for the boat from 18ft to 35ft with good enough space on deck.

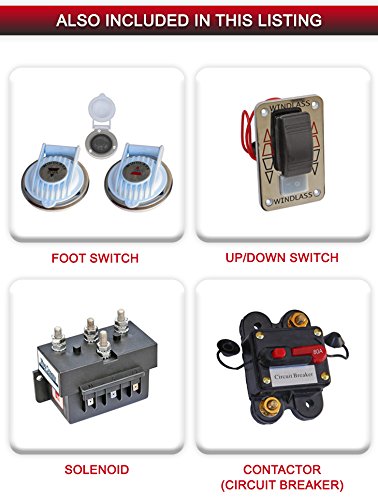

Simple to horizontally install,adjustable take hold of, works with chain best or rope/chain combination. All accessories are included – Solenoid – Circuit Breaker – Up/Down switch – Foot Switches
Manual Wiring and fasteners don’t seem to be included.
Voltage: 12V
Motor: 900W
Current draw(A): 35
Max. working load (kgs/Ibs): 250/550
Max. power pull (kgs/Ibs): 750/1650
Drop speed chain( m/min )/(ft/min): 35/115
Require Chain:
Size: 5/16″ Link: HT-G4
or
Size: 8 mm, Link: DIN766
Require Rope: 14 mm (9/16″)
S-series Heavy Duty Style Marine Anchor Horizontal Windlass
All accessories are included – Solenoid- Circuit Braker – Up/Down switch- Foot Switches – Manual

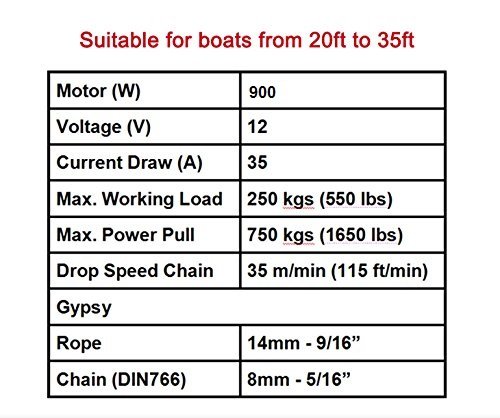

Motor (W) 900 – Voltage (V) 12 – Current Draw (A) 35
Suitable for boats from 20ft to 35ft
Require Rope: 14 mm (9/16″) – Require Chain: Size:5/16″ Link: HT-G4 or 8 mm, Link: DIN766
