Application:
Yacht / RV/Caravan pressurized water system,
Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
Clean machine, Humidifier, Water purification, Medical apparatus
Food beverage filling & liquid transfer,
Every other pressurization system
Features:

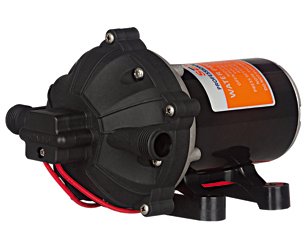

SEAFLO DC Diaphragm pump is specially made for RV/MARINE Yachts and Every other pressurization system. All SEAFLO pumps have been strictly tested and inspected by QC department to guarantee proper operation. The patented design delivers smooth，consistent Drift at all ranges of operation, whilst drawing low current. The balanced motor design comprises precision ball bearings for long life, motor is equipped with an integral thermal breaker. All marine duty pumps have sealed switches and are finished with a Electro Coating to inhibit corrosion. Marine duty fresh water pumps are enclosed to prevent incidental moisture from entering and when installed as it should be, Marine Duty Fresh Water Pumps provide years of quiet operation. A SEAFLO pump in combination with a low backpressure water system can exceed all expectations.
Functions:
a) Motor Voltage: 24V DC
b) Max Drift rate: 18.9lpm (5.0gpm),
c) Max Pressure: 60psi (4.1bar),

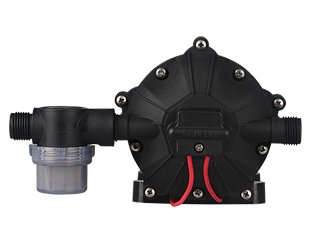

d) SFS51-01inlet strainer to your choice. Inlet/Outlet fitting: 13mm pyramid hose barb, 1/2 NPT thread fitting to your choice.
e) Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered keep watch over you’ll make a choice pump without pressure protection.
f) Duty Cycle: Intermittent (under different pressure the continuous working time can also be different)
The patented design delivers smooth，consistent Drift at all ranges of operation, whilst drawing low current.
The balanced motor design comprises precision ball bearings for long life, motor is equipped with an integral thermal breaker.
All marine duty pumps have sealed switches and are finished with a Electro Coating to inhibit corrosion.
Marine duty fresh water pumps are enclosed to prevent incidental moisture from entering and when installed as it should be, Marine Duty Fresh Water Pumps provide years of quiet operation.
A SEAFLO pump in combination with a low backpressure water system can exceed all expectations.
