Boat part number 1045331 is a brand new battery selector switch from Trac, part number T10151 .

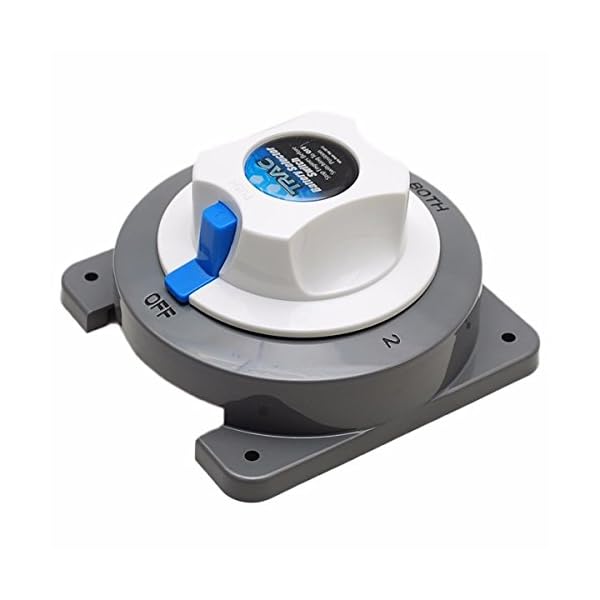

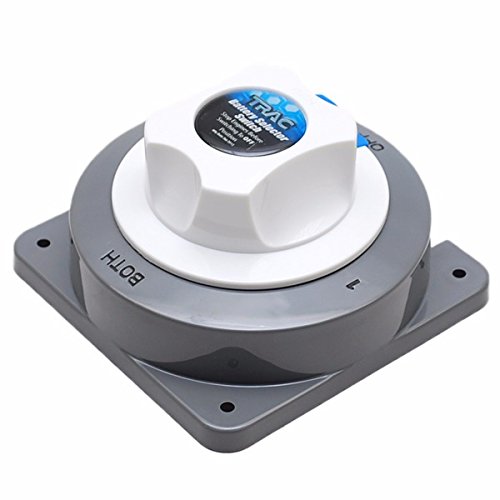

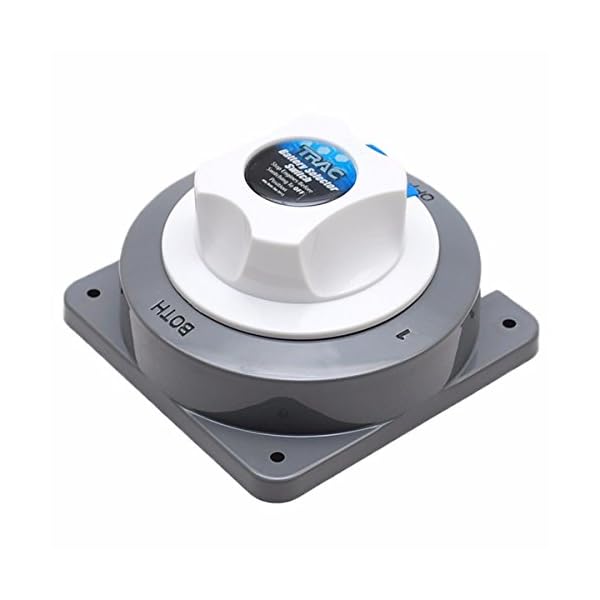

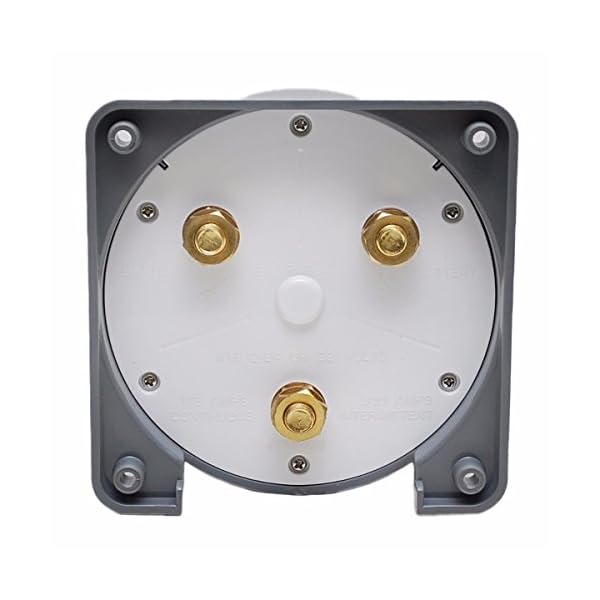

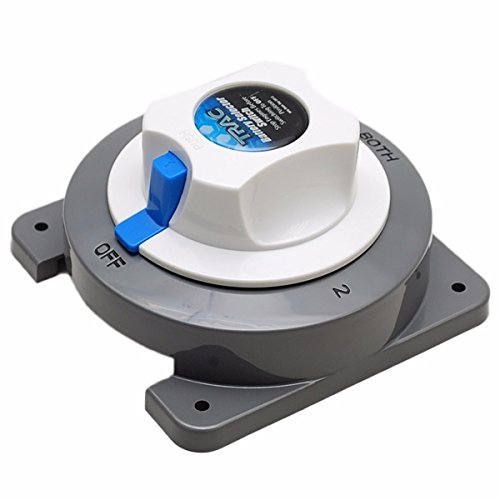

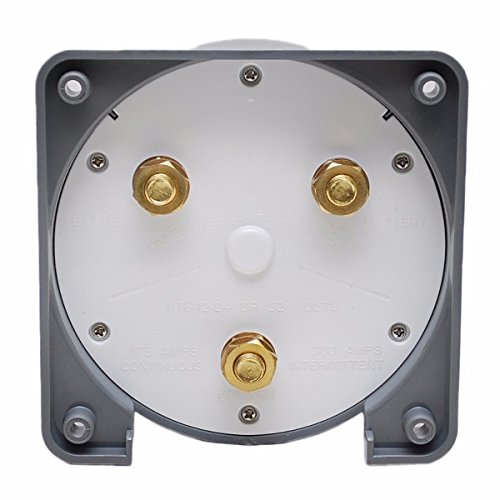

This grey and white battery selector switch measures approximately 5 1/4″ L x 5 1/4″ W x 3″ D overall, and mounts by means of (4) 1/8″ diameter holes 4 3/8″ apart center on center Trac battery selector switch is needed for ship’s provide systems fed by two batteries. The switch will also be safely rotated to make a choice either Battery 1 or Battery 2 or Both. No alternator disconnect.
Specifications:
- Part Manufacturer: Trac
- Part Number: T10151
- Colors: Gray / White
- Overall Dimensions: 5 1/4″ L x 5 1/4″ W x 3″ D
- Mounts: (4) 1/8″ Dia. Holes 4 3/8″ Apart Center on Center
- Continuous Duty Rating: 175 Amps
- Intermittent Duty Rating: 300 Amps
- Suitable for 6v, 12v, and 24v
- Ignition protected
Sold as seen in pictures. Customers please note each and every computer shows colors otherwise. All measurements are approximate.

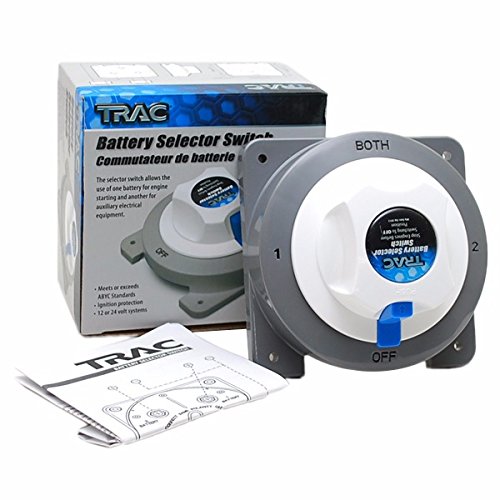

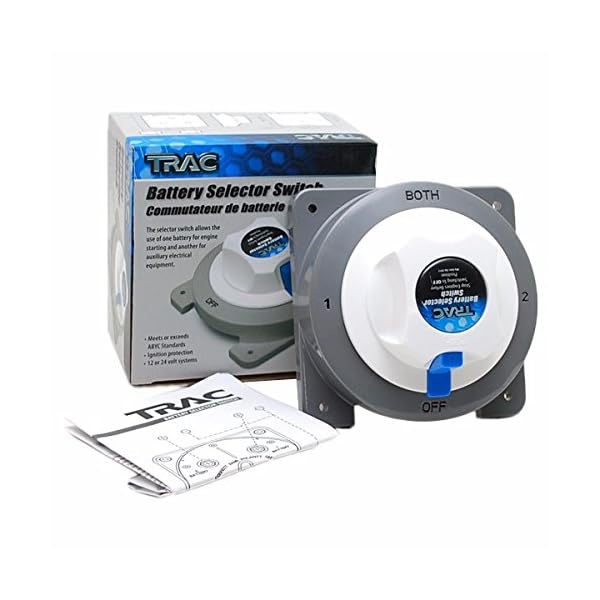

Instruction / installation manual included. Hardware now not included.
Manufacturer: Trac; Manufacturer Number: T10151
Colors: Gray / White; Overall Dimensions: 5 1/4″ L x 5 1/4″ W x 3″ D
Continuous Duty Rating: 175 Amps; Intermittent Duty Rating: 300 Amps
Suitable for 6v, 12v, and 24v; Ignition safe
Sold as seen in pictures; Note each and every computer shows colors otherwise; All measurements are approximate; Hardware and instruction/installation manual now not included.
