102 Actuator
Used with Troll’n Tab Kits prior to 2000

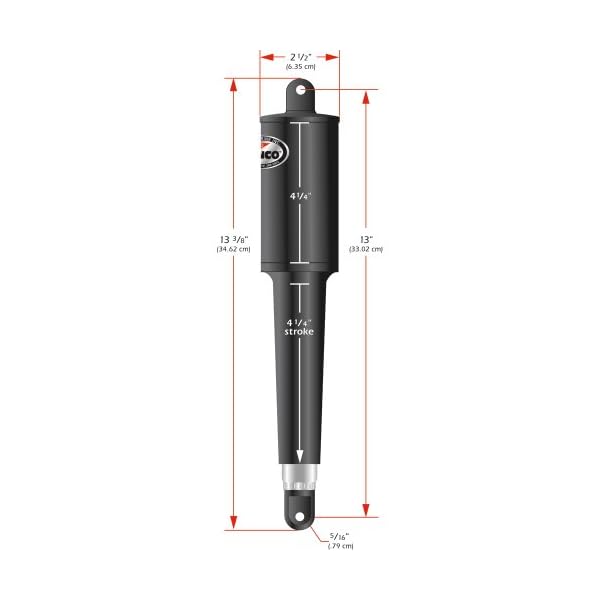

5/16″ (.79 cm) mounting hardware
Stroke: 4-1/4″ (10.8 cm)
Length overall: 14″ (35.56 cm)
Length pin to pin: 13″ (32.87 cm)
Diameter (upper housing): 2-1/2″ (6.35 cm)
Mounting hardware: 5/16″ (.79 cm) or Delrin Pin (Part #15087-001)
Part # (Superceded #)
# 15059-001 (102-2) 12 Volt w/6′ (1.83m) leads with Deutsch connectors and mounting hardware(replacement length)
- Top cap gland seal sheaths the actuator cable outer jacket in addition to both internal conductors for max waterproofing
- Corrosion proof Vandar mounts
- Stainless steel ram may not flex, even under extreme loads
- Double O-ring for max protection
- Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there is not any need for complicated limit switches and clutches
- Self-locking ballscrew locks into position and won’t drift
- Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
- Tough, high-torque motor easily transfers 750 lbs
- High-affect, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
- Corrosion proof Vandar cap and mount, stands as much as severe lots
Most sensible cap gland seal sheaths the actuator cable outer jacket in addition to both internal conductors for max waterproofing
Corrosion proof Vandar mounts
Stainless-steel ram may not flex, even under extreme lots
Double O-ring for max protection
Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there is not any need for complicated limit switches and clutches
