UV stabilized construction – Built to last in marine conditions
Easy to put in – Comprehensive wiring diagram and installation
Instructions included:
2 copper terminal studs with nuts and washers;
4 mounting screw holes.
Does not include mounting screws
Beware of inferior non-genuine products available on the market that claim to be just as good
Specifications
Voltage: 8V to 60V DC
Rated at 1250 Amps momentary @ 12V DC, 200 Amps continuous 12V DC
Base: 2.85″ x 2.85″ (72.5mm x 72.5mm)
Height: 2.90″ (73.5mm)
Terminal studs: 10mm diameter

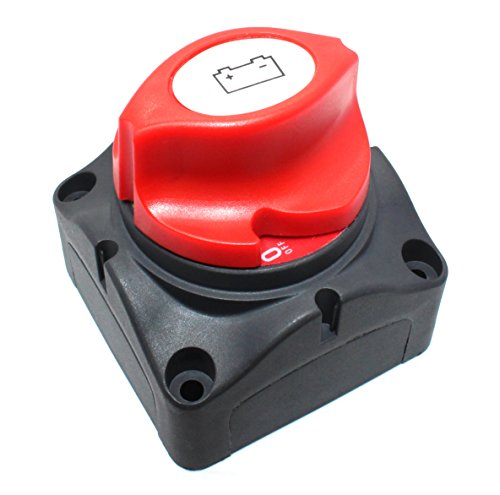

Extra Heavy Duty – Rated at 1250 Amps momentary, 200 Amps continuous 12V DC
2-Position: ON and OFF positions
Can be utilized with 8V as much as 60V DC systems to isolate and protected the electrical system
Disconnects the battery safely, to do away with any power draw from the battery when vehicle or boat isn’t in use Compact size, sleek brand new appearance, sturdy and durable
Patented contour link system, allowing it to be a standalone unit, or linked in conjunction with other identical switches Rotary dial has a spring-loaded keeper to lock the selected position
