Continental ContiTech F5 Blue TPE Air Hose Assembly, NPT Male Couplings, 300 PSI Max Pressure

Continental ContiTech
Add to Wishlist
Compare

Hybrid thermoplastic hose for a variety of applications in industries such as construction and manufacturing
Flexible RMA Class B thermoplastic elastomer tube and cover for durability, flexibility, and resistance to oil and cold
Polyester yarn reinforcement for strength

Amazon.com Price: $72.62 $62.91 (as of 14/04/2017 03:27 PST- Details)

Clear
StumbleUponEmail
Add to Wishlist

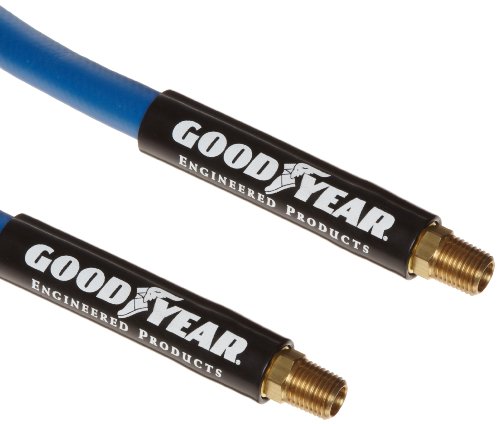

This Goodyear Engineered Products F5 Blue TPE air hose assembly is a hybrid thermoplastic hose manufactured for quite a few pneumatic applications where resistance to oil and cold temperatures is necessary. Its tube and blue cover are both made of thermoplastic elastomer (TPE), which is non-marking, both durable and flexible, and resistant to oil. Both components are rated Rubber Manufacturers Association (RMA) Class B, which means that that they are going to undergo a maximum volume change of +65% and maximum 50% loss of their tensile strength after exposure to oil. This hose is reinforced with polyester yarn for strength, can face up to temperatures ranging from -40 to +158 degrees F (-40 to +70 degrees C), and comes equipped with two factory-installed brass male National Pipe Taper (NPT) threaded fittings. This hose is suitable for quite a lot of pneumatic applications in industries such as construction and manufacturing.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose should be adequate to keep pressure loss to a minimum and steer clear of damage to the hose as a result of heat generation or over the top turbulence. The hose should be capable to withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection should ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Veyance Technologies manufactures and sells Goodyear Engineered Products, including industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.

Hybrid thermoplastic hose for quite a few applications in industries such as construction and manufacturing
Flexible RMA Class B thermoplastic elastomer tube and cover for durability, flexibility, and resistance to oil and cold
Polyester yarn reinforcement for strength
Temperature range of -40 to +158 degrees F (-40 to +70 degrees C)
Two factory-installed brass male NPT fittings
