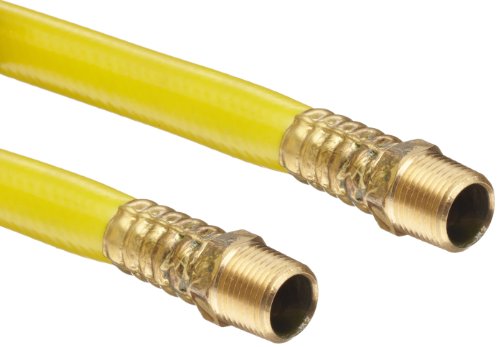

Goodyear EP Pliovic Yellow PVC Multipurpose Hose Assembly

The Goodyear Engineered Products Pliovic Yellow PVC multipurpose air hose assembly is a nonconductive, general-purpose hose manufactured for carrying air, water, and quite a lot of spray solutions. Its tube and non-marking yellow cover are both constructed with Rubber Manufacturers Association (RMA) Class B Pliovic (PVC, polyvinyl chloride) for medium oil resistance, this means that that both components will undergo a maximum volume change of +65% and will retain a minimum of 50% of their tensile strength after exposure to oil. This hose is also resistant to weathering, abrasion, moisture, alkalis, and weak acids, and is reinforced with spiral synthetic yarn for the strength necessary to achieve and take care of its maximum pressure rating of 300 psi. It is rated with a minimum electrical resistance greater than one (1) megohm per inch of hose length at 1,000V DC, and is capable of functioning effectively at temperatures ranging from -10 to +158 degrees F (-23 to +70 degrees C). This hose comes equipped with two factory-installed brass NPT male couplings, and is suitable for quite a lot of industrial, construction, and agricultural applications. Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method to help decide the kind of hose needed: Temperature (maximum and minimum temperatures of material being transported), Material (to be conveyed, type and concentration), Pressure (maximum working pressure), Ends (type of end connectors or couplings on hose), Delivery method (volume and velocity). The inside diameter of the hose will have to be adequate to keep pressure loss to a minimum and avoid damage to the hose as a result of heat generation or excessive turbulence. The hose will have to have the ability to withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection will have to ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation. Veyance Technologies manufactures and sells Goodyear Engineered Products, including hoses, industrial power transmission products, conveyor belts, hydraulics, rubber track, and automotive and truck products. It is headquartered in Fairlawn, OH.
Hose for conveying air, water, and spray solutions in industrial, construction, and agricultural applications
RMA Class B Pliovic (PVC) tube and cover for medium oil resistance and resistance to weathering, abrasion, moisture, alkalis, and weak acids
Spiral synthetic yarn reinforcement for strength
Temperature range of -10 to +158 degrees F (-23 to +70 degrees C)
Two factory-installed brass NPT male couplings
