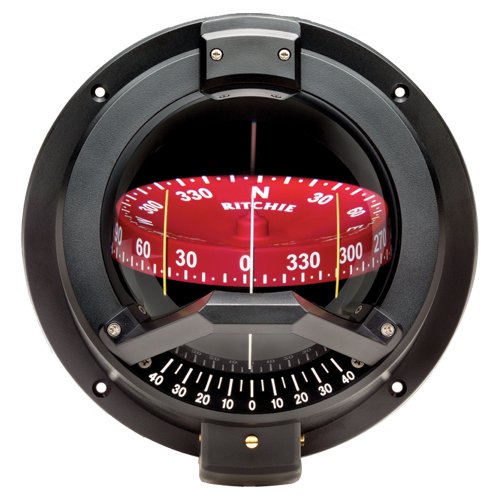

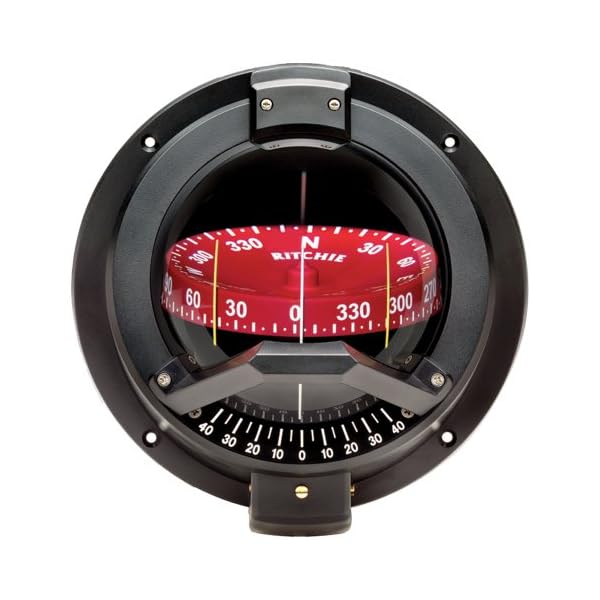

BN-202 Navigator
Navigator Compass Features:
- 4 1/2″ Ritchie CombiDial and Built-in Clinometer
- Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Built-in Compensators to Easily Adjust for Deviation
- 45 degree Lubber Lines
- Exclusive Built-in Dual 12 Volt NiteVu Lighting
- Fiberglass Reinforced Bowl
- Easily Installed, Fits 5.75″ (14.61 cm) Mounting Hole. Click here to view a template of the mounting hole (NOTE: Be sure you print the template actual size).
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)
Protective Cover: BN-C
Replacement Parts
- Light Assembly: Upper: NV-0045XSP; Lower: NV-0044XSP
Notes:
-
For Navigators built before 1986 please see the service manual page 6-12 or contact Ritchie for replacement lighting.
12 volt lighting standard – 24 & 32 volt lighting options are available.
Black compass with red 4-1/2″ Ritchie CombiDial and Built-in Clinometer
Internal gimbals
Matched hardened steel pivot and sapphire jewel movement
45° lubber lines
100% repairability and 3xclusive 5-year Ritchie warranty
