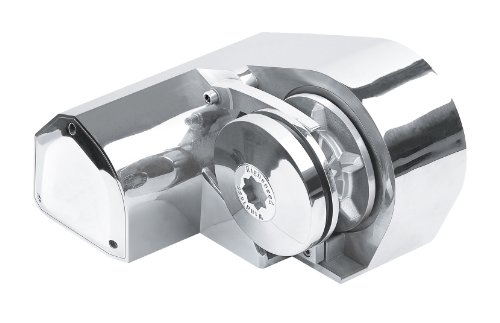

The S series by Hardware Factory Store are constructed from high polished stainless-steel 316. Powerful and compact, the S series is made to be mounted above the deck for situations where under-deck mounting isn’t an option. The S series is a horizontal windlass system, with an adjustable grasp and a variety of power for lifting your anchor quickly. The S series will work with chain handiest or a rope/chain combination.

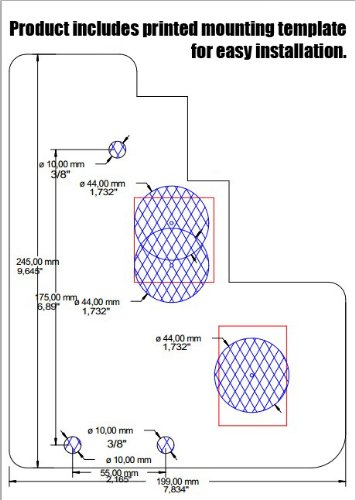

Included with this auction: windlass (most sensible & geared motor), lever, bolts and screws, user manual, electrical installation guide, and a broadcast installation template for drilling the mounting holes and chain feed hole.
Model Number-S912 Motor – 900 watt Voltage – 12 volt Max Working Load – 250 kgs / 550 lbs Max Power Pull – 750 kgs / 1650 lbs Current Draw – 35 Amp Drop Speed Chain Per Min – 35 m / 115 ft Chain/rope – 8 mm – 5/16″ HT G4 Rope Alt. – 14 mm – 9/16″ line Weight – 13 kgs – 28.5 lbs
Stainless Steel construction for an exquisite finish
Pulling power of 1650 lbs
Works with chain or a chain/rope combo
Horizontal above-deck mounting position, less wholes to drill into your deck
Quick and robust motor with a drop speed of 115ft per minute
