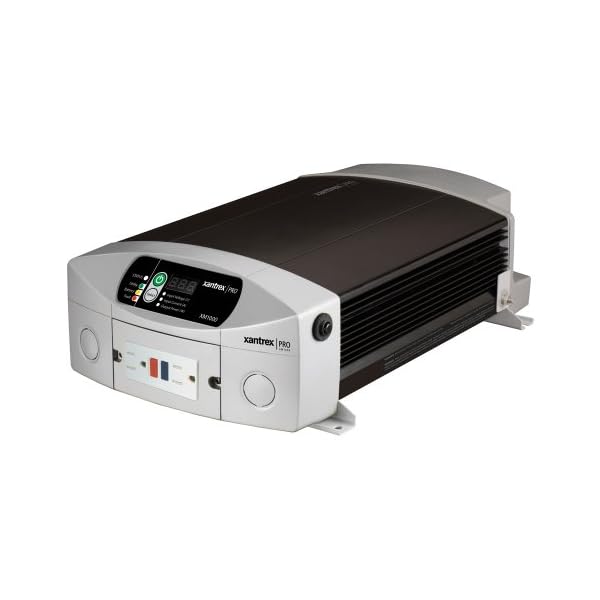

Xantrex 806-1010 Model XM 1000 Pro Series 12V Power Inverter; 1000W inverter easily powers TVs, small appliances, and other electronics; Built-in 15A circuit breaker to offer protection to GFCI attached loads
The Xantrex PRO Series Power Inverters are the very best complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These power inverters feature a detachable, digital remote keep an eye on to display precise inverter, AC source and battery status information from one convenient location.
Key Features
- Up to 15A pass through for hardwired loads
- Digital remote keep an eye on displays power output, AC source and battery voltage
- Detachable remote keep an eye on will also be mounted wherever convenient
- Conformal coated electronics provide moisture resistance
- Battery over-voltage and under-voltage protection
- Over temperature shutdown
- Automatic overload protection
- Short-circuit protection
- Ground fault protection
Specifications
- Output power: 1000W
- Surge rating: 2000W
- Output current (continuous): 8.3A
- Output voltage range: 115V +/- 10V
- Output frequency regulation: 60Hz +/- 1Hz
- Output waveform: Modified sine wave
- Peak efficiency: 88%
- No load power (producing output voltage): <6W
- Power attract standby mode: < 2W
- Input opearating voltage range: 11.0 – 15.5 Vdc
- Transfer relay rating: 15A
- Transfer time: 40ms
- Operating temperature range: 32°F – 140°F
- Storage temperature range: -4°F – 140°F
- AC receptables: 2
- Recommended DC fuse: 150A
- Dimensions (HxWxL): 4″x8.3″x12.9″
- Weight: 8 lb
1000W inverter easily powers TVs, small appliances, and other electronics; Built-in 15A circuit breaker to offer protection to GFCI attached a lot
As much as 15A pass through for hardwired a lot; Digital remote keep an eye on displays power output, AC source and battery voltage
Detachable remote keep an eye on will also be mounted wherever convenient; Conformal coated electronics provide moisture resistance
Designed to be hard-stressed out the usage of a terminal strip or by connecting AC through a GFCI receptacle (included)
Battery over-voltage and under-voltage protection, Over temperature shutdown, Automatic overload protection, Short-circuit protection, Ground fault protection
