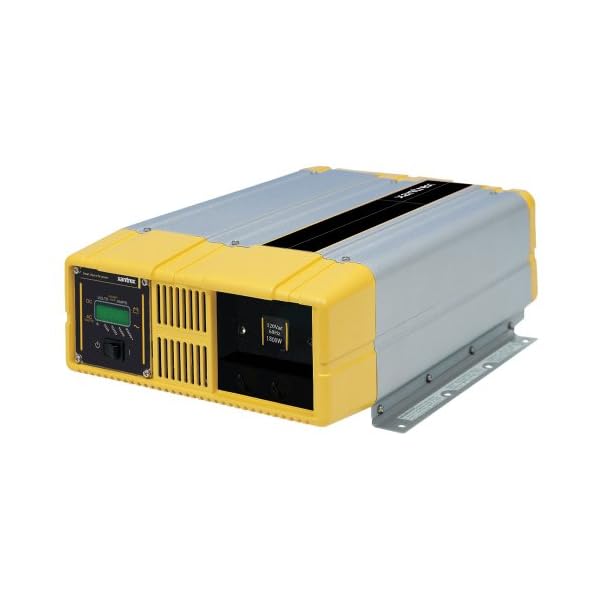

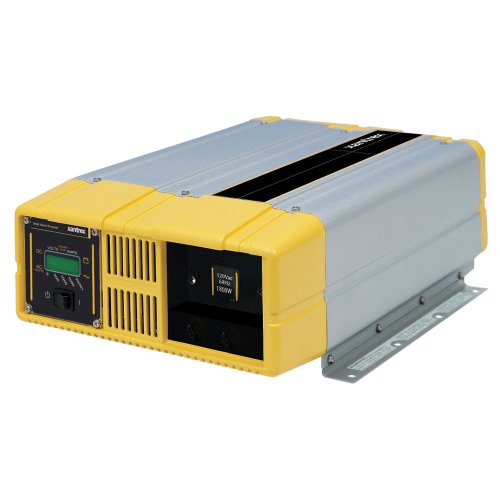

Xantrex 806-1851 PROsine 1800 24V Power Inverter with AC Hardwire Terminal Strip, 1800 watt inverter (2900 watt surge capability), Removable LCD display can also be mounted remotely for keep an eye on and monitoring
Offering superior quality true sine wave output, the Prosine 1000 and 1800 stand-on my own power inverters are ideally suited for electrical systems that have already got a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is in a position to handling both heavy duty and smaller, a couple of AC lots. Prosine inverters include a backlit LCD display panel, which can also be mounted remotely.
Key Features
- True sine wave AC output (crystal controlled)
- Unique DC terminals offer 180-degree connections for simple installation in tight places
- Powersave mode draws only 1.5 watts under no load
- Remote interface kit for remote mounting of display module
- Over temperature shutdown and automatic overload protection
- Over voltage and under voltage protection
- Short circuit and AC backfeed protection
Specifications
- Output current (peak): 45A
- Output voltage (at no load): 120 Vac +/-3%
- Output frequency: 60 +/-0.05 (crystal controlled)
- Output waveform: True sine wave (THD 1% typical)
- Peak efficiency: 89%
- No load power draw (search mode): <1.5W
- No load power draw (idle mode): ~ 20W
- Input voltage range: 10 − 16 Vdc
- Transfer time AC to inverter and inverter to AC: 1 cycle (typical, < 20ms)
- Operating temperature range: 32°F − 140°F
- Storage temperature range: -22°F − 158°F
- AC output types: Dual GFCI receptacle
- Recommended DC fuse: 225A or 300A
- Dimensions (HxWxD): 4.5″ x 11.0″ x 15.4″
- Weight: 16.5 lb
1800 watt inverter (2900 watt surge capability), True sine wave AC output (crystal controlled)
Unique DC terminals offer 180-degree connections for simple installation in tight places Powersave mode draws only 1.5 watts under no load
Remote interface kit for remote mounting of display module, Over temperature shutdown and automatic overload protection
Over voltage and under voltage protection, Short circuit and AC backfeed protection
PROsine inverters are lighter and more compact than other inverters with an identical power ratings because they use high-frequency switching technology within the power conversion process
