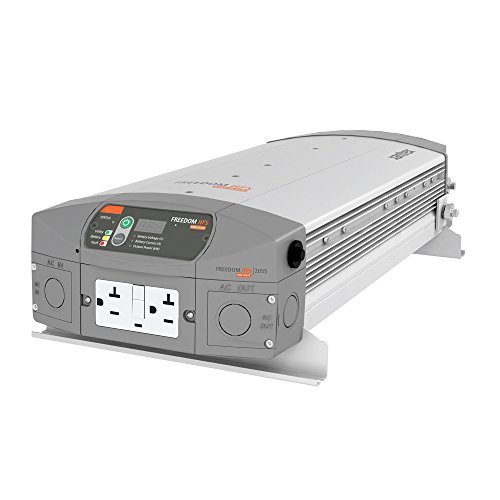

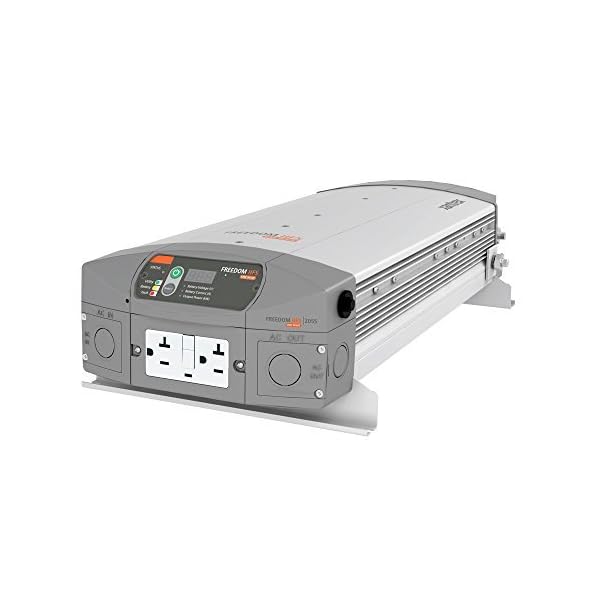

Xantrex 807-2055 Freedom HFS 2055 Inverter/Charger; 2000 watts continuous AC power; Powerful fast charging 55 amp, 12 Vdc multi-stage charger; 2X continuous power surge for demanding loads
The new generation Freedom HFS is supplied with quick-connect AC terminals, ignition keep an eye on capability and programmable smart battery management logic. The short-connect AC terminal on both AC input and output enables incredibly simple installation. The ignition keep an eye on feature minimizes unintended battery drain.
Key Features
- Cold temperature performance down to – 20°C for the cruel winter environments
- Configurable Ignition keep an eye on that is helping to reduce battery drain
- Dead battery charging down to 0 Vdc
- Quick connect AC terminal block for speedy and reliable installation
- Detachable remote panel for convenient system status monitoring
- Overload, over temperature, under/over voltage protection
Specifications
- Inverter
- Surge rating: 4000W
- Output current (continuous): 16.9A
- Output voltage range: 110 – 125 Vac
- Output frequency regulation: 60 Hz
- Output wave form: True sine wave
- No-load input power (producing output voltage): < 10 W
- Off mode current draw (display off): < 4mA
- Input opearating voltage range: 10.5 – 16.5 Vdc
- Power attract stand-by mode: < 10W
- Operating voltage range: 10.5 – 16.5 Vdc
- Charger
- AC input operating voltage range: Vac 90 – 140 Vac
- AC transfer relay: 30A
- Transfer time: < 40ms
- Battery voltage (nominal): 12 Vdc
- AC input (max. charge): 16 AAC
- AC receptables: 20A GFCI
- General
- Operating temperature range: -4°F – 122°F
- Storage temperature range: -40°F – 158°F
- Dimensions (HxWxL): 4.7″ x 9.4″ x 19.2″
- Weight: 14.4 lbs
Cold temperature performance down to – 20°C for the cruel winter environments
Configurable Ignition keep an eye on that is helping to reduce battery drain, Dead battery charging down to 0 Vdc
Quick connect AC terminal block for speedy and reliable installation, Detachable remote panel for convenient system status monitoring
Programmable Smart Battery Management logic to facilitate extended battery use & life
Quality, reliability and safety that meets stringent CSA and UL458 with marine supplement usual
